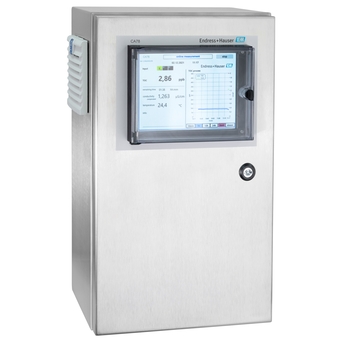

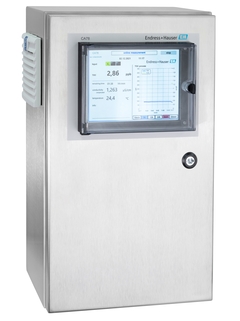

Total organic carbon (TOC) content strongly influences the quality of ultrapure water. A high TOC concentration can cause damage of water purification systems or compromise the required water quality. The CA78 online TOC analyzer provides continuous, accurate TOC monitoring ensuring consistently high quality of the ultrapure water used in your production processes. You gain full control of your product yield and quality.
The CA78 TOC analyzer is perfectly suited to TOC monitoring of ultrapure water in the following industries:
Real-time overview of water quality: The online TOC analyzer measures continuously with a fast response time (t90) of 50 seconds. This enables you to react immediately to potential water contamination and to protect your product effectively.
CA78 uses proven UV oxidation and differential conductivity measurement which is the most-established method for reliable TOC trace analysis in ultrapure water.

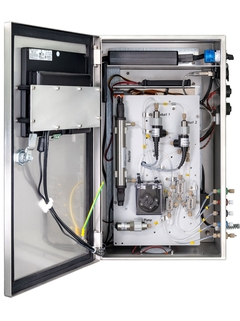

The analyzer's maintenance-friendly design in combination with our worldwide service network offers you complete support for the measuring point, from commissioning throughout the entire lifespan of the device.
Perfect adaption to your process needs: Select between the high-precision 2 µS/cm conductivity version and the robust version that tolerates 10 µS/cm. Reduce your investment costs by the optional 3 channel configuration.
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Determination of total carbon in ultrapure water applications, e.g. in the power or semiconductor industry, that meet the following conditions: Conductivity < 10 μS/cm pH range: neutral
Power supply
100/240 V AC, 47 - 63 Hz
Output / communication
0/4 to 20 mA, galvanically isolated
Input
1 to optional 3 measuring channels Optinonal control input 24 V (for 1 channel instruments)
Threaded with fixed cable: -20 to 100 °C (-4 to 212 °F) Threaded with plug-in head: -20 to 120 °C (-4 to 248 °F) Sterilization: max. 140 °C (284 °F) for 30 minutes
Process pressure
13 bar at 20 °C (188 psi at 68 °F) absolute 2 bar at 120 °C (14 psi at 248 °F) absolute
Threaded with fixed cable: -20 to 100 °C (-4 to 212 °F) Threaded with plug-in head: -20 to 120 °C (-4 to 248 °F) Sterilization: max. 140 °C (284 °F) for 30 minutes
Process pressure
13 bar at 20 °C (188 psi at 68 °F) absolute 2 bar at 120 °C (14 psi at 248 °F) absolute
